Description

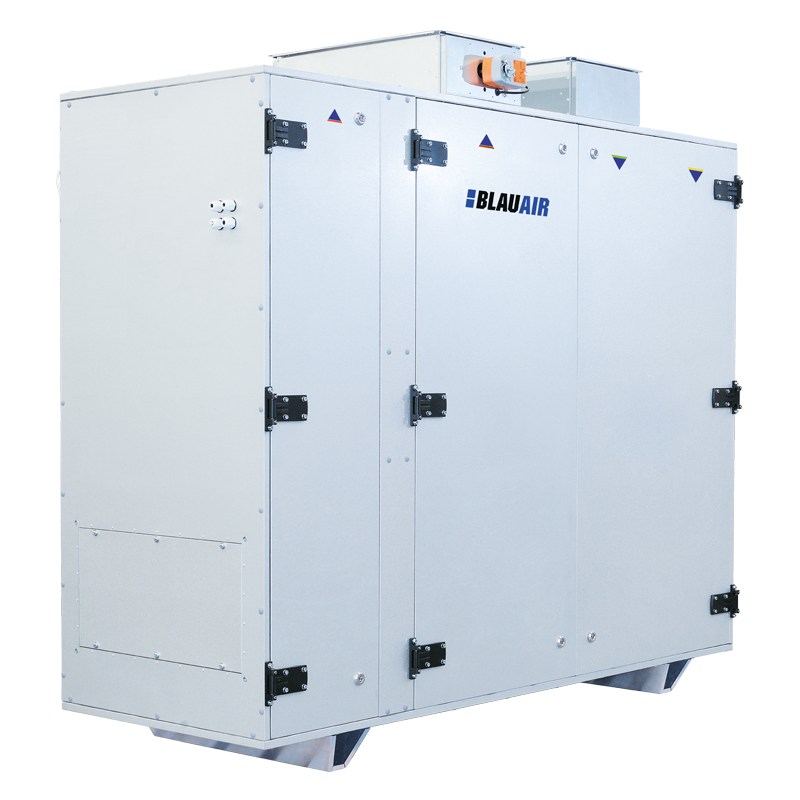

The BlauAir CFV series is a high-performance range of floor-mounted air handling units with heat recovery, engineered to supply fresh, filtered air while recovering up to 90% of extracted heat. Its robust design, compact footprint, and wide airflow range make it ideal for large-volume applications in educational, commercial, and office buildings.
Key Features
- Airflow Range – Models available with 800, 1200, 1500, 2500, 3500, 5000, and 6000 m³/h capacities

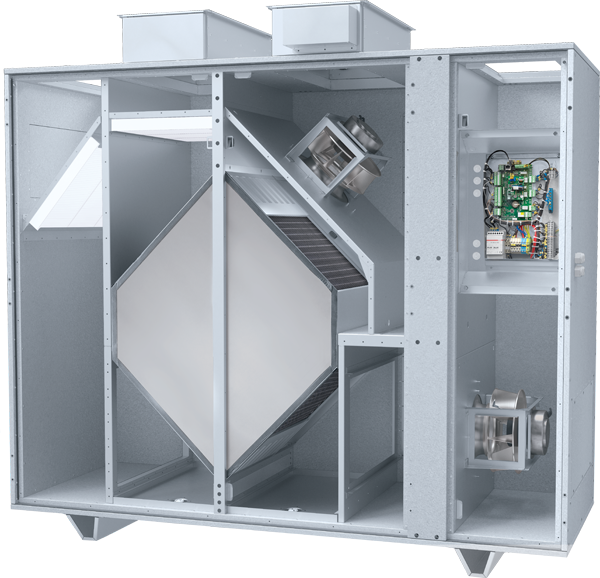

- High-Efficiency Heat Recovery – Counterflow polystyrene plate heat exchanger with stainless steel drain pans on both air streams
- Energy-Efficient EC Fans – Backward-curved, external rotor EC motors for maximum efficiency and quiet operation.
- Filtration – Equipped with ISO ePM1 70% (F7) panel filters on both supply and extract air streams
- Automatic Bypass – With Belimo actuator for frost protection, free cooling, and summer ventilation.
- Smart Automation –
- Integrated S21 automation system with Modbus RTU/TCP, RS-485, Ethernet.
- Wi-Fi operation via Blauberg AHU mobile app (iOS/Android).
- Compatible with S22 and S25 wall control panels (optional)
- Cooling with heating mode (DX Coil) is only available with S29, S31 and S37 controls.
- Flexible Heating & Cooling Options – Can be paired with water/freon coolers or electric/water heaters for year-round climate control
- Accessories – Full range of silencers, VAV/CAV systems, economisers, and additional filters available.
