Description

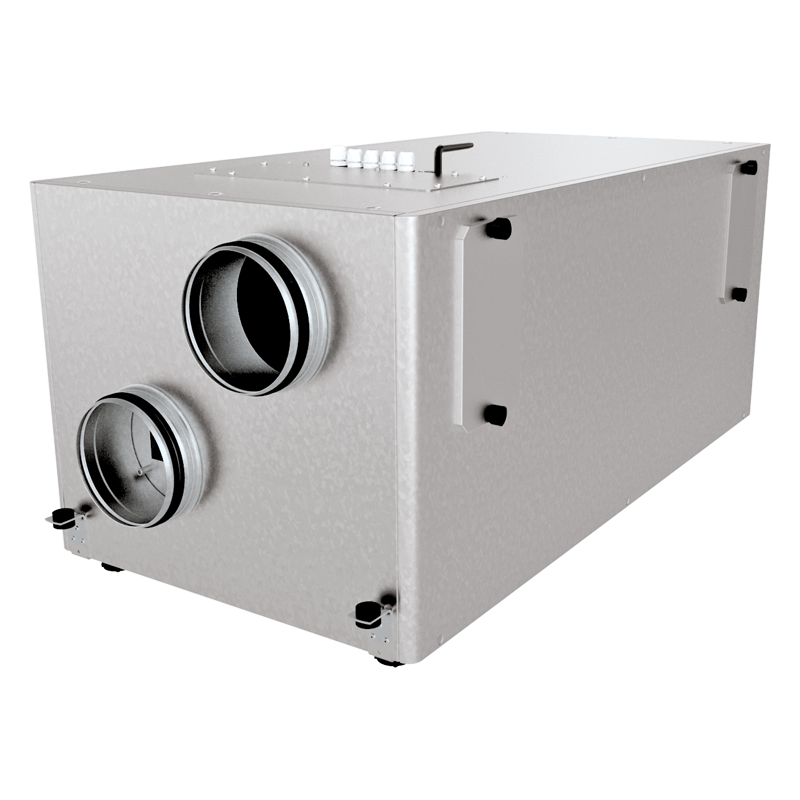

The Komfort EC LBE 400 is a premium heat recovery air handling unit engineered to deliver superior indoor air quality with maximum energy efficiency. Designed with a robust double-skinned galvanised steel casing and 40 mm mineral wool insulation, it provides excellent thermal and acoustic performance, making it suitable for residential and small commercial applications
Key Features:
- Airflow Capacity: Up to 480 m³/h @100pa, ensuring reliable ventilation for medium to large houses and small commercial applications.
- Heat Recovery Efficiency: Up to 91%, achieved through a counter-flow polystyrene heat exchanger that recycles heat from the extract air. The LBE version includes an electric reheater for additional supply air temperature control.
- Integrated Filtration: Equipped with G4 extract filters and dual-stage F7 supply filters, offering effective dust and particle protection.
- Bypass Function: Automatic summer bypass for natural cooling using fresh outdoor air.
- Quiet Operation: Low noise levels (as little as 38 dBA at 3m) make it suitable for living spaces.
Smart Control & Connectivity:
The S21 controller provides full automation and connectivity options:
- Wi-Fi and Ethernet for remote management via the Blauberg AHU mobile app (iOS & Android).
- BMS integration with Modbus (RTU/TCP).
- Flexible scheduling, boost mode, timer, fireplace mode, and freeze protection.
- Optional sensors for CO₂, humidity, VOC, and PM2.5 for intelligent air quality management.
