Duco MVHR Humidity Sensor
Duco MVHR Humidity Sensor - Image 2

Duco MVHR Humidity Sensor

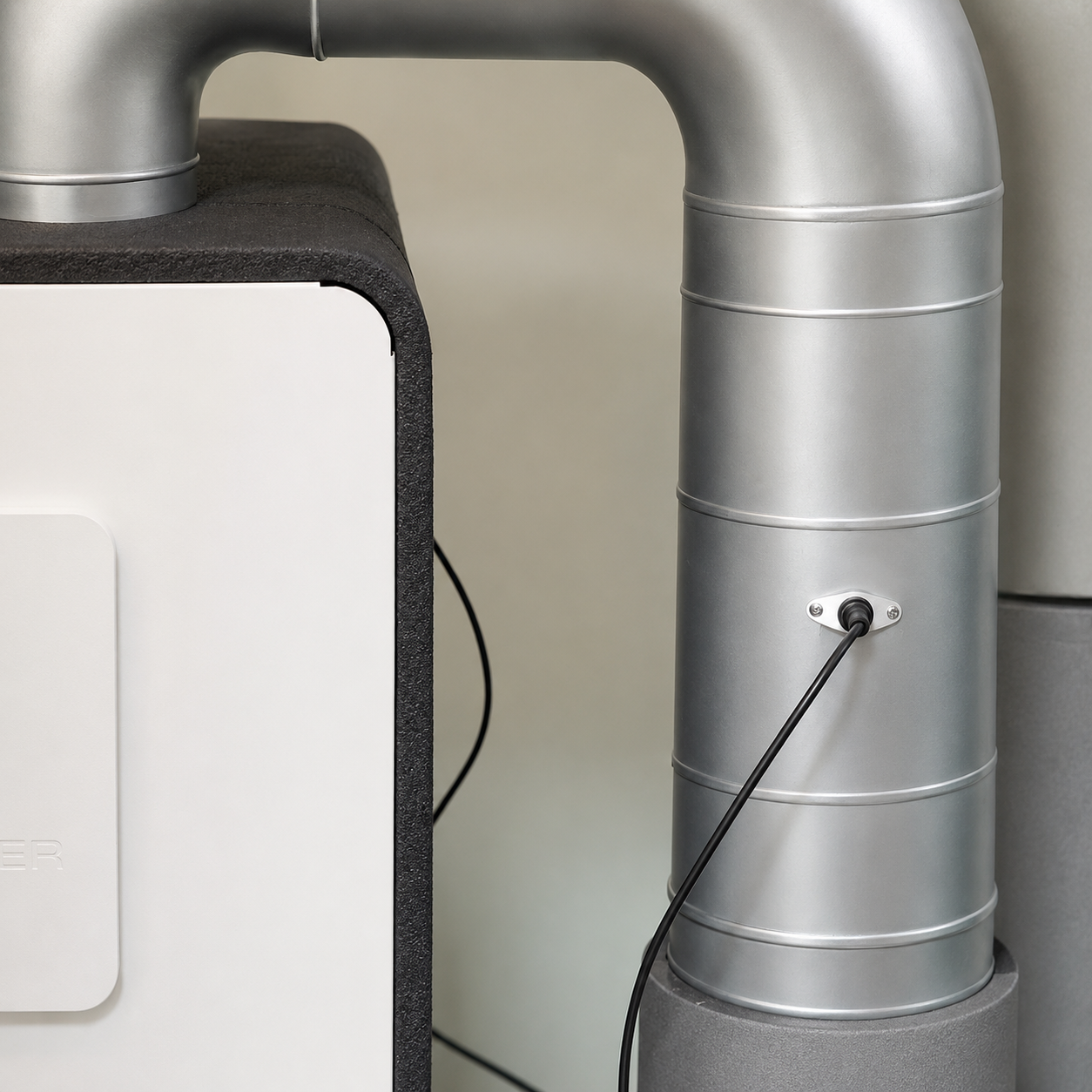

The optional Humidity Sensor is installed in the extract air duct (ETA) of the DucoBox Energy Comfort (Plus). It continuously measures the humidity of the extracted indoor air, ensuring precise and efficient regulation of the ventilation system. The sensor is designed for airtight mounting in the duct and features a pre-mounted cable for quick, plug & play connection to the DucoBox PCB

SKU: 8d036d0be400 Categories: , ,

Description

The optional Humidity Sensor is installed in the extract air duct (ETA) of the DucoBox Energy Comfort (Plus). It continuously measures the humidity of the extracted indoor air, ensuring precise and efficient regulation of the ventilation system. The sensor is designed for airtight mounting in the duct and features a pre-mounted cable for quick, plug & play connection to the DucoBox PCB.

Key Features:

  • Measures relative humidity (0–100% RH) and temperature.
  • High accuracy: ±2% RH and ±0.5 °C.
  • Compact and lightweight (69 g).
  • Durable design: IP65 protection, suitable for long-term reliability.
  • Ultra-low power consumption (average 0.005 mW)

Data Sheet
