Description

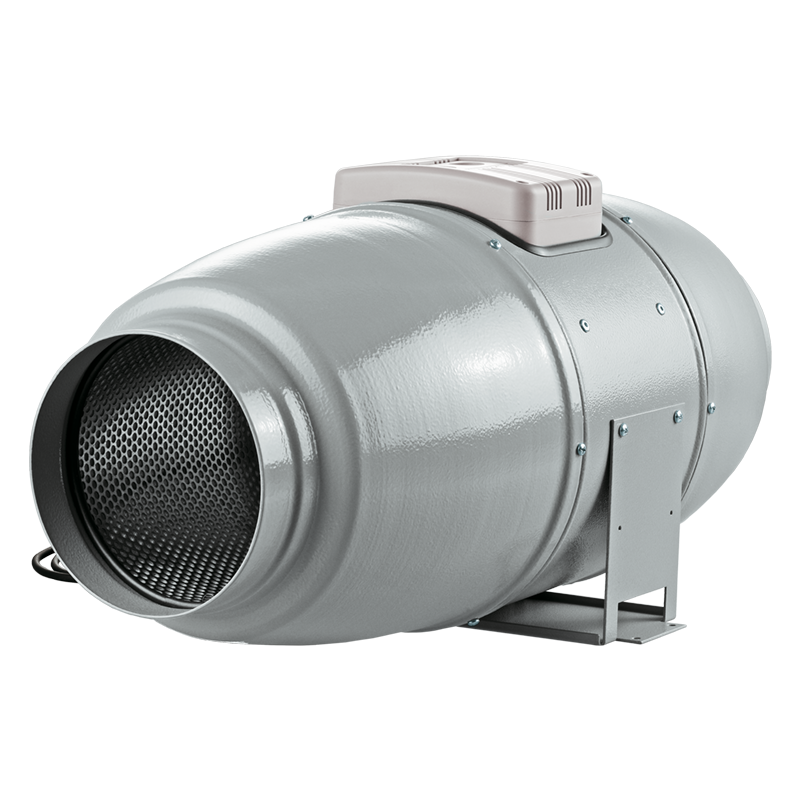

The Iso-Mix EC range combines advanced EC motor technology with a robust, sound-insulated casing to create a fan that delivers high pressure, strong airflow, and quiet operation. Designed for demanding ventilation systems, these fans are perfect for spaces where both performance and noise reduction are critical, such as offices, classrooms, libraries, hotels, and residential buildings.
Key Features
- High Performance Airflow:
- Iso-Mix EC 200 – up to 1040 m³/h (289 l/s)
- Iso-Mix EC 315 – up to 1970 m³/h (547 l/s)
- Sound-Insulated Design:
- 50 mm mineral wool casing for noise and heat insulation.
- Perforated inner casing reduces wideband noise across all frequencies.
- Sound levels from just 43–46 dBA @3m, depending on model.
- Energy-Efficient EC Motor:
- Up to 35% energy savings compared to asynchronous motors.
- Fully controllable with a 0–10 V signal (via controller, sensors, or BMS).
- Integrated overheating protection with automatic restart.
- Durable Construction:
- Outer casing: steel with polymer coating.
- Inner casing & impeller: high-quality, dynamically balanced plastic.
- Flexible Installation:
- Compatible with Ø200 mm and Ø315 mm ducts.
- Mountable on floors, walls, or ceilings at any angle.
- Can be installed in parallel (for higher capacity) or in series (for higher pressure).
