Description

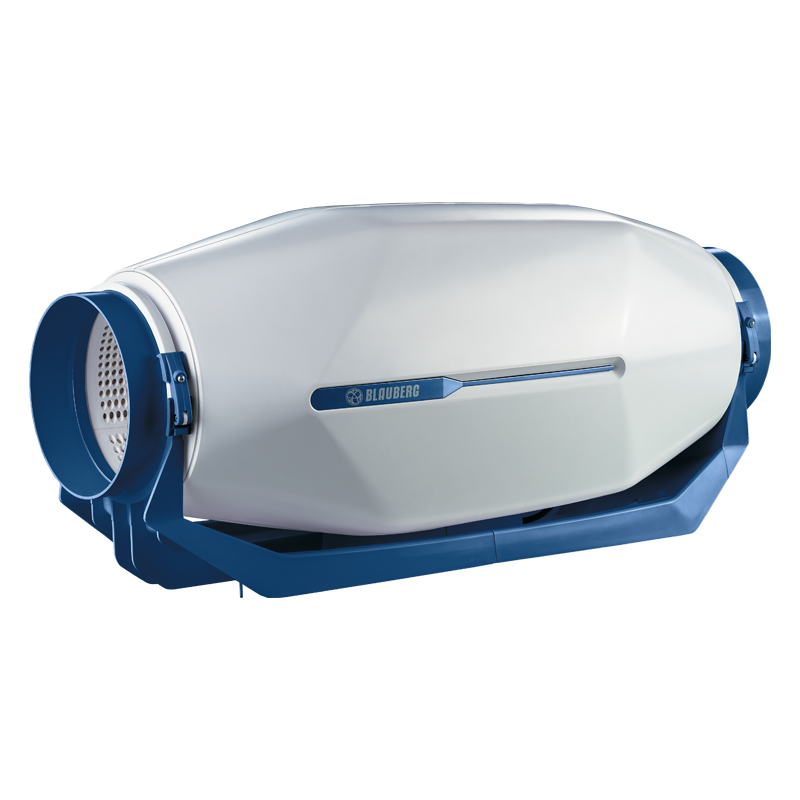

The Blauberg InWave EC range comprises sound-insulated inline mixed-flow fans for supply or extract ventilation where low noise and reliable airflow are important. Available with 100, 125, 150 and 160 mm duct connections, the range combines an energy-efficient EC motor with a 50 mm mineral wool insulated casing.
Key Features
- Choice of sizes and airflows:
- InWave EC 100: up to 245 m³/h (68 l/s)
- InWave EC 125: up to 350 m³/h (97 l/s)
- InWave EC 150/160: up to 600 m³/h (167 l/s)
- Quiet operation: A perforated inner casing and 50 mm mineral wool insulation help absorb sound. Published sound pressure levels at 3 metres are 29 dB(A) for the 100 mm model, 28 dB(A) for the 125 mm model and 38 dB(A) for the 150/160 mm model.
- Energy-efficient EC motor: Offers adjustable speed through a 0–10 V control signal, with integrated overheating protection and automatic restart. Blauberg states energy savings of up to 35% compared with asynchronous motors.
- Flexible control: Speed can be adjusted using a compatible controller or sensor. The 150/160 model can also be integrated with a suitable BMS control system.
- Practical installation: Durable plastic casing, dynamically balanced impeller and mounting brackets suitable for floor, wall or ceiling installation.
