Description

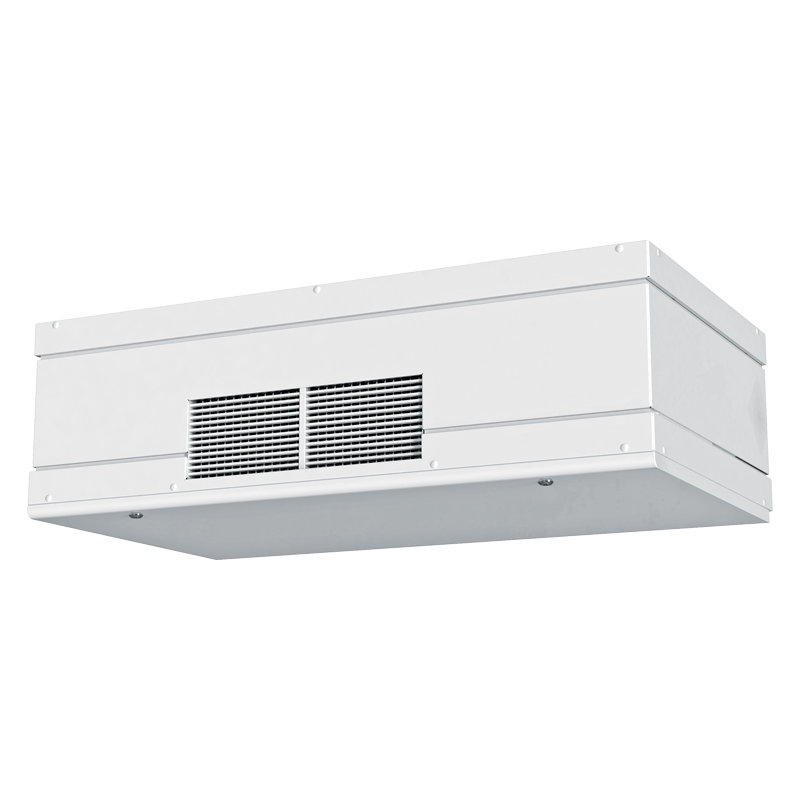

The CIVIC EC DB V.2 is a modern, suspended ceiling air handling unit designed for efficient supply and extract ventilation in schools, offices, and public/commercial premises. It’s a compact solution that does not require ductwork, making it perfect for both new installations and retrofit projects.
Key Features
- Airflow Capacity: Models available with 300, 500, and 1000 m³/h options, suitable for a wide range of room sizes.
- Heat Recovery Efficiency: Counter-flow polystyrene heat exchanger achieves up to 96% efficiency, significantly reducing heating/cooling loads
- Filtration:
- Supply filter: ISO ePM1 60% (F7) for fine particle capture.
- Extract filter: ISO Coarse >60% (G4) for dust and large particles
- Low Noise: Quiet operation with sound pressure as low as 24–34 dBA at 3m, depending on model
Smart Controls:
-
- Integrated S21 automation system.
- Wi-Fi control via Blauberg Home app (iOS & Android).
- Compatible with BMS (Modbus RTU/TCP, RS-485, Ethernet).

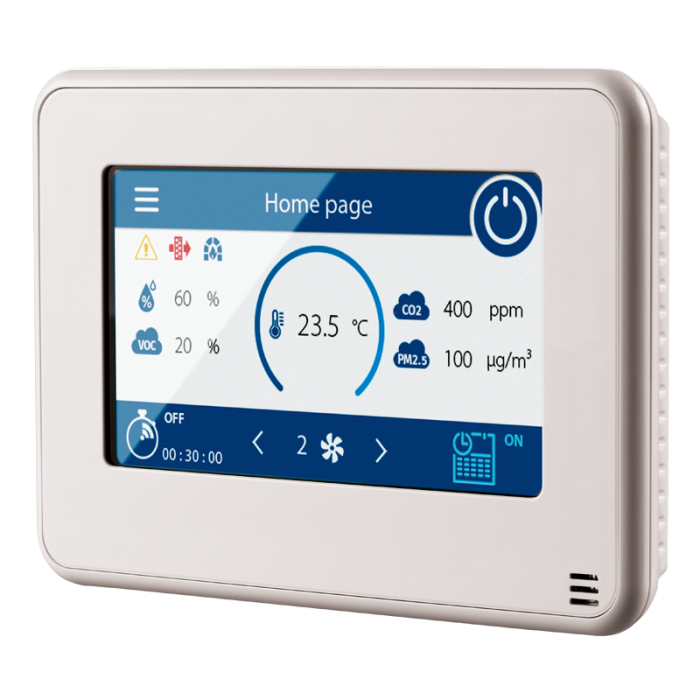

- Remote operation via S22 or S25 control panels (optional).
- Bypass & Seasonal Modes: Automatic summer bypass for free cooling.
- Heating Options: Available with preheater (DBE models) or preheater + reheater (DBE2 models) for cold climates
- Energy Efficient EC Motors: High-performance with full speed regulation and efficiency up to 90%
Technical Highlights
- Power Supply: 230 V (single-phase); 400 V available on some 1000 m³/h models.
- Airflow Range: 300–1000 m³/h (83–278 l/s).
- Power Consumption: 204–267 W (without heater).
- Operating Temperature: –25…+40 °C.
- Duct Diameters: Ø200 mm (300 models), Ø250 mm (500 models), Ø315 mm (1000 models).
- Casing: Polymer-coated steel with 25–45 mm EPDM (polyurethane foam) insulation for thermal and acoustic comfort
- Weight: 78–252 kg depending on model.
- SEC Class: A+ across the range
Applications
- Schools & Universities – Provides healthy fresh air with energy savings.
- Offices & Meeting Rooms – Quiet operation and air quality control for work environments.
- Public & Commercial Spaces – Ideal for classrooms, libraries, shops, and other occupied spaces.
- Retrofits & Renovations – Ductless design makes it simple to add efficient ventilation to existing buildings.
Accessories
Compatible with a wide range of add-ons, including CO₂ sensors, VOC sensors, humidity sensors, Wi-Fi panels, LCD controllers, and decorative grilles.
